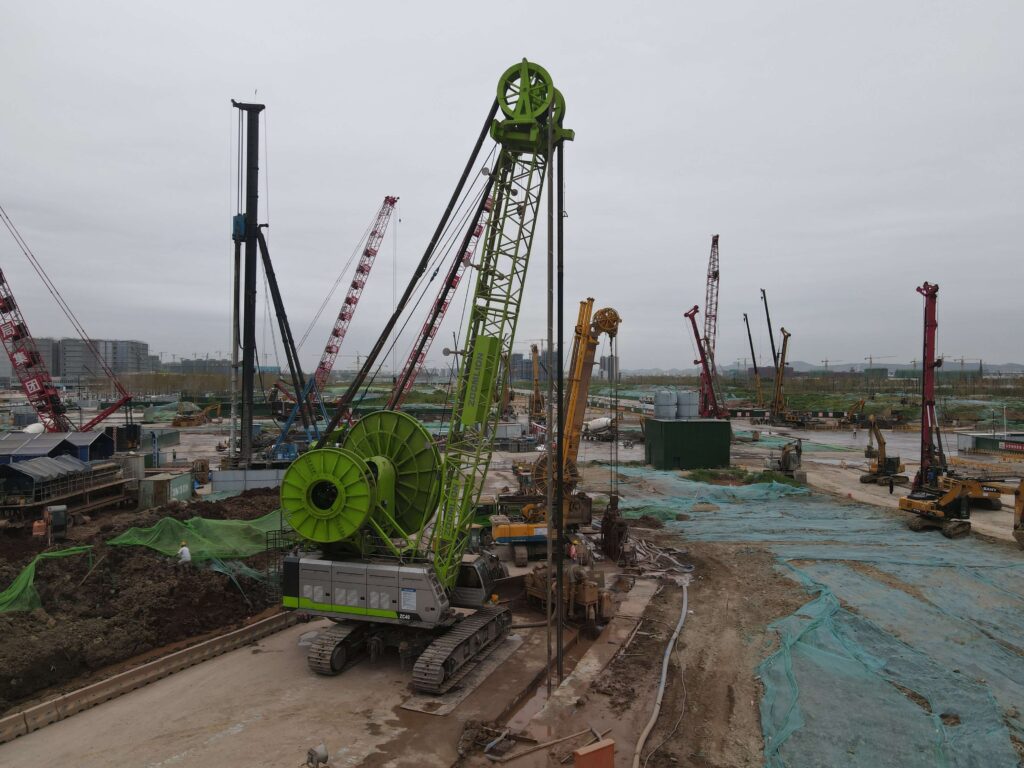

ZC40

Trench Cutter

ZC40

This product adopts full telecontrol system, with higher intelligence and better comfort. The mud pipe, hydraulic pipe and cable following system is fully automatic, with adaptive control of tensioning tension depth and real-time follow-up of milling device.

9c7e7709541d486bbd90852b92254b5d
026b8490090143f992f6686a54d183d0
026b8490090143f992f6686a54d183d0

2x100 kN·m

Max. milling torque

450 m³/h

Max. Slag discharge flow

30-40 t

Weight of milling device

1.8 m

Max. cutting width

IMAGES

Advantage introduction

    • High power of milling and slagging system, high speed milling without overload.
    • Large push plate, thousand graded tilt sensor, realize slotting accuracy within 3‰.
    • Milling device Z-axis angle fine-tuning mechanism, the equipment is more convenient for slotting and seating.
    • Special chassis, layered design, staggered layout, convenient maintenance.
    • Truss support, wire rope variable amplitude structure, large working amplitude, can realize tool holder reverse stand, milling slot specification switching more convenient.
Performance parameters
Performance parameters
Max, milling torque 2×100kN.m
Max.slag discharge flow 450m3/h
Weight of milling device 30~40t
Max. cutting width 1.8m
Cutting depth 80/120m
Cutting precision 3‰
Max. lifting force 720kN
Max. lifting speed 15m/min
Max. feed speed 2m/min
Max. working range 6200mm
Parameters of main winch
Parameters of milling device
Engine parameters
Travelling mechanism
Complete machine
