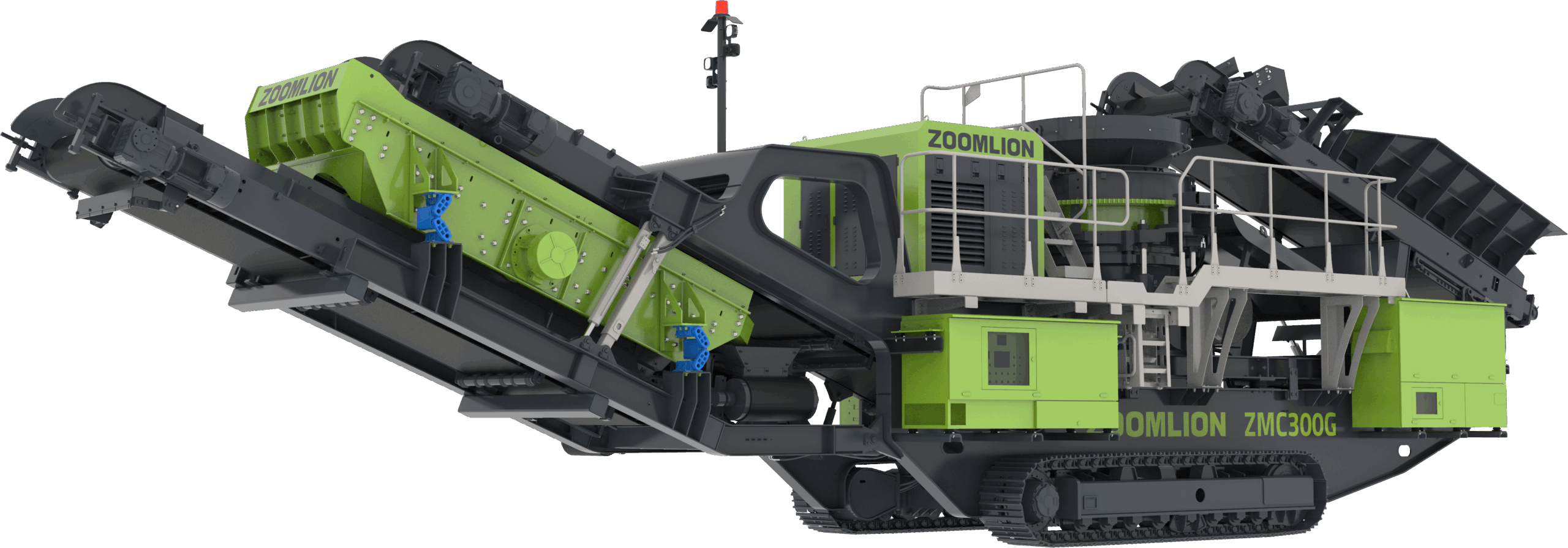

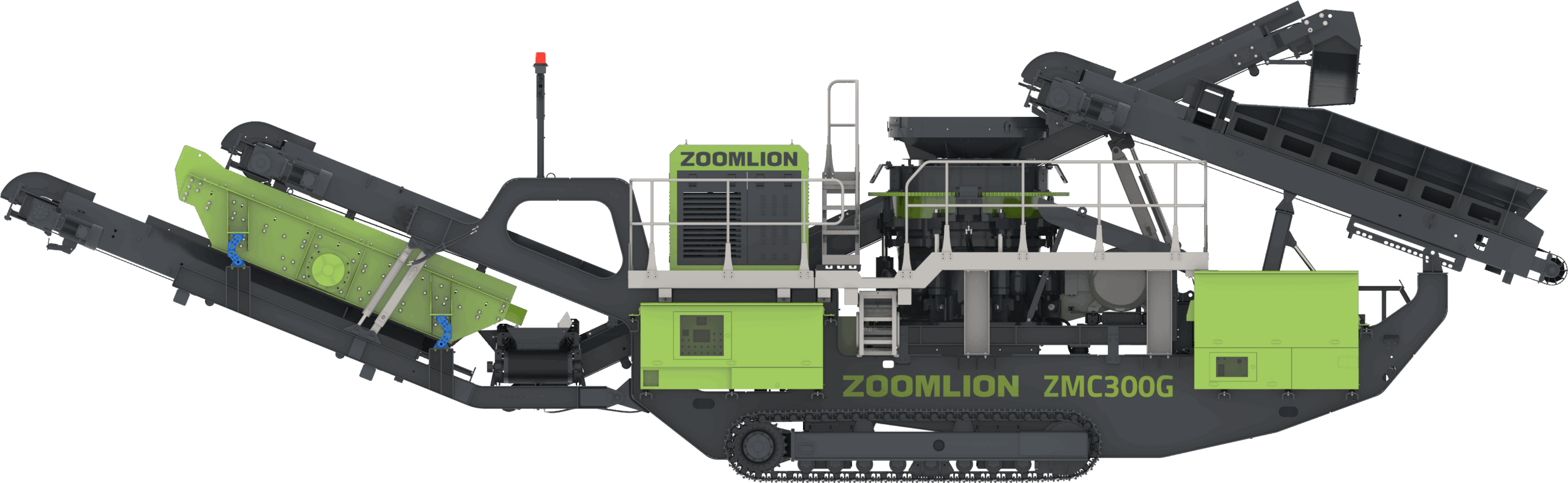

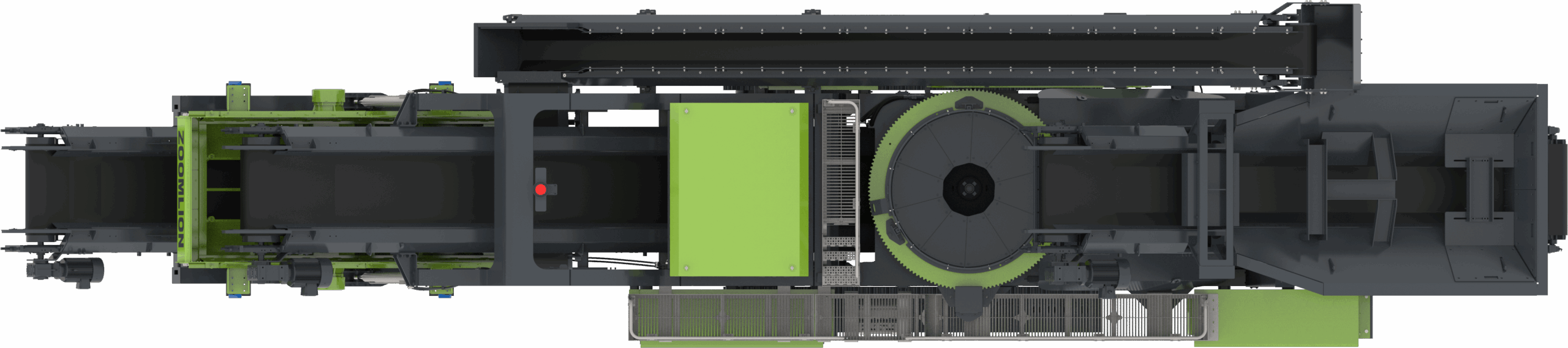

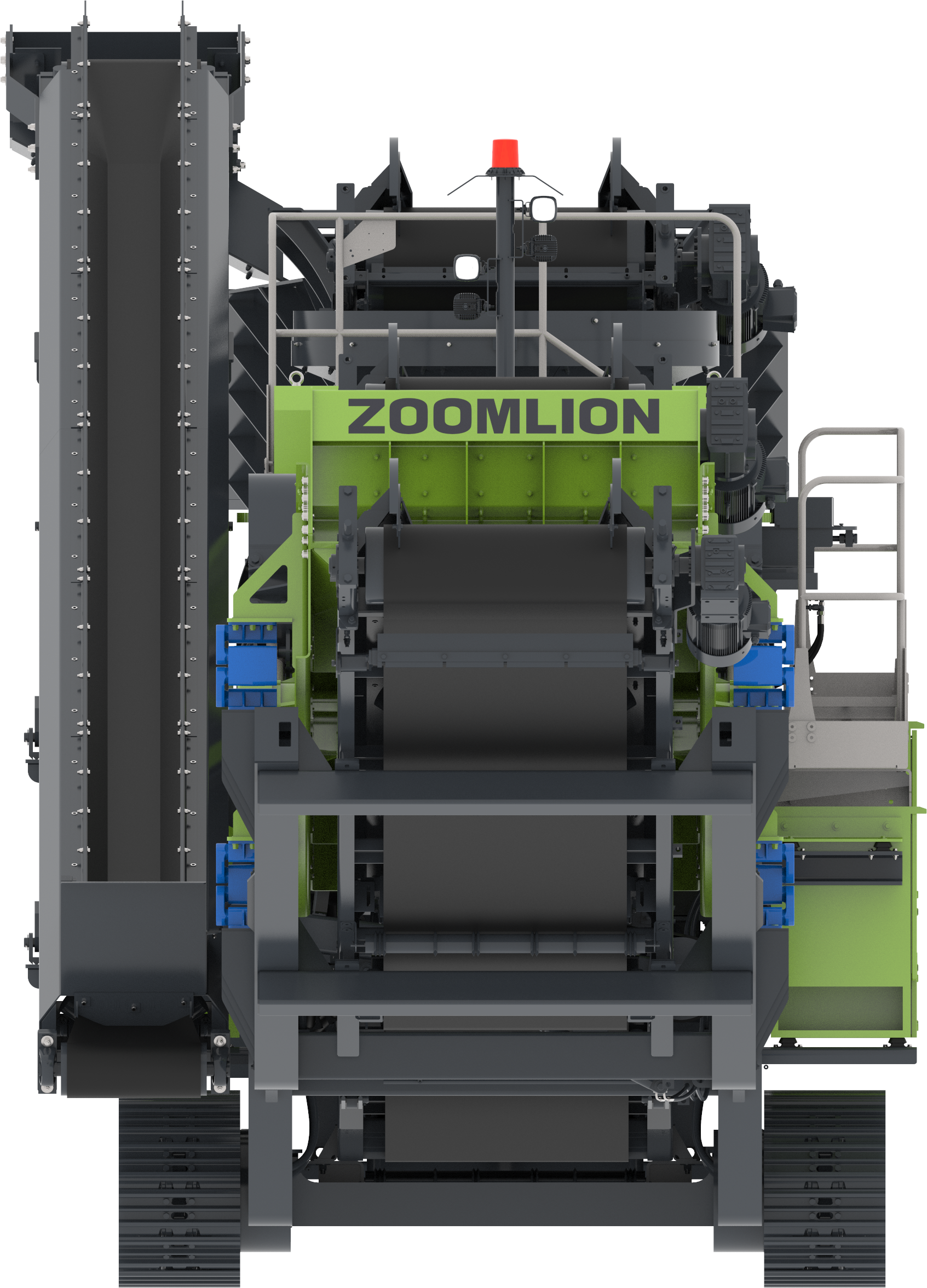

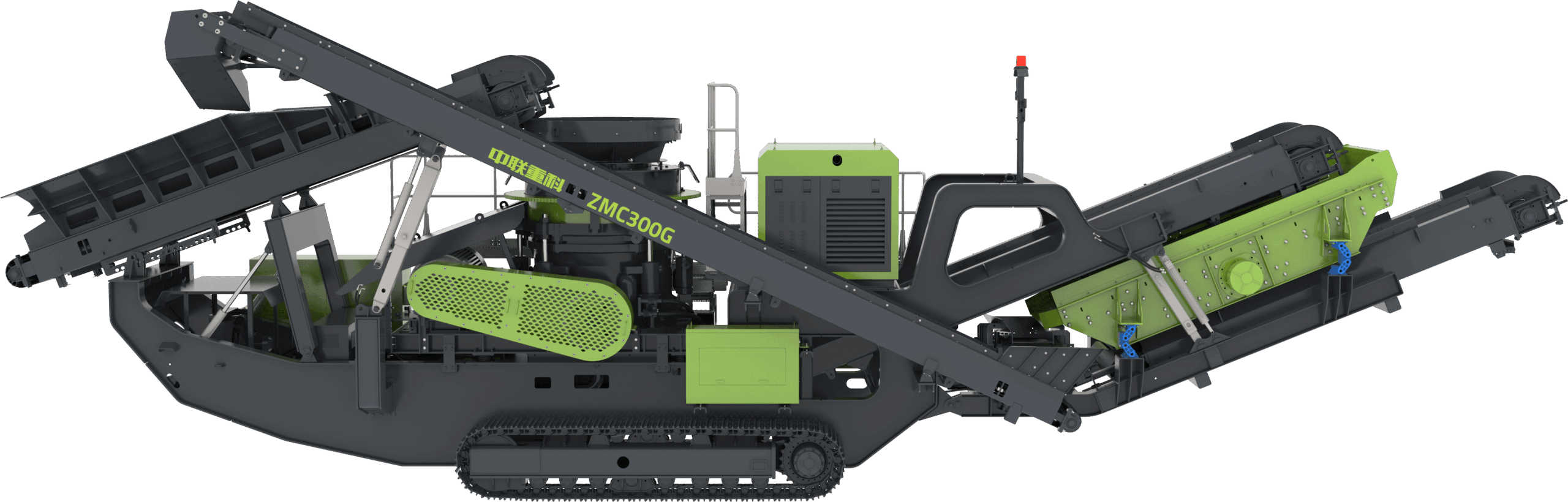

ZMC300G Mobile Cone Crusher

Crushing & Screening Equipment

ZMC300G Mobile Cone Crusher

Superior performance and efficient and reliable

Hydraulic automatic adjustment of discharge port of cone crushing can easily ensure the accurate size of products.
The return screen of mobile cone crusher adopts high-power vibration motor, lightweight design and large tilt angle arrangement, the vibration amplitude generated by the return is large, so the processing capacity is larger.
The max capacity of ZMC300G Mobile Cone Crusher, made by ZOOMLION, is 320t/h, and the max feeding grain size is 210mm.

9c7e7709541d486bbd90852b92254b5d
51c628b8431247859ca0285f57201087
1dea1098d7f745f1822810ae1d6f18ed ba9840748dc647c6a3d656e073f855b6 8d0b623f07444edeb399c747ceaff243 4d449c6817214567bafaca9287e72e90 b06e1ef5f18d46a9b591359192d20f75 8d0b623f07444edeb399c747ceaff243
IMAGES

210 mm

Maximum feed size

320 t/h

Capacity

321 kW

Driving Power

Advantage introduction

  • Use ZCF300 cone crusher, made by ZOOMLION;
  • Capacity is 320t/h, the max feeding grain size is 210mm;
  • High-power vibration motor, lightweight design and large tilt angle;
  • One-touch start/stop technology for easy operation;
Main Parameters Unit Value
Capacity t/h 115-320
Maximum feeding size mm 210
Main Conveyor Width x Length mm B1000x12500
Discharge Height mm 3300
Crushing Device Power kW 250
Engine Power kW 103
Transport Size Width x Length x Height m 18.05×3.72×3.97
Total Weight t 55
Power Type \ E
