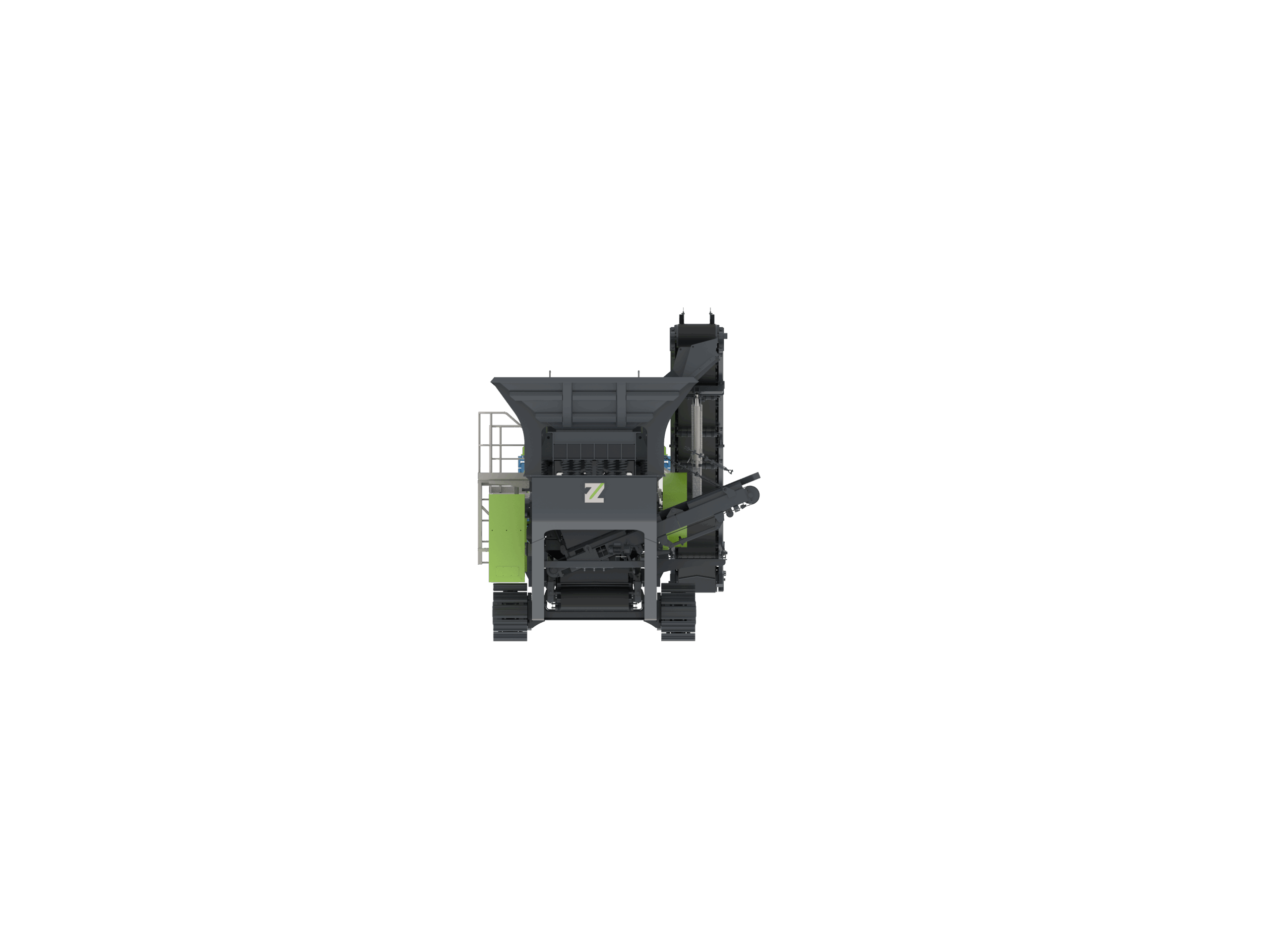

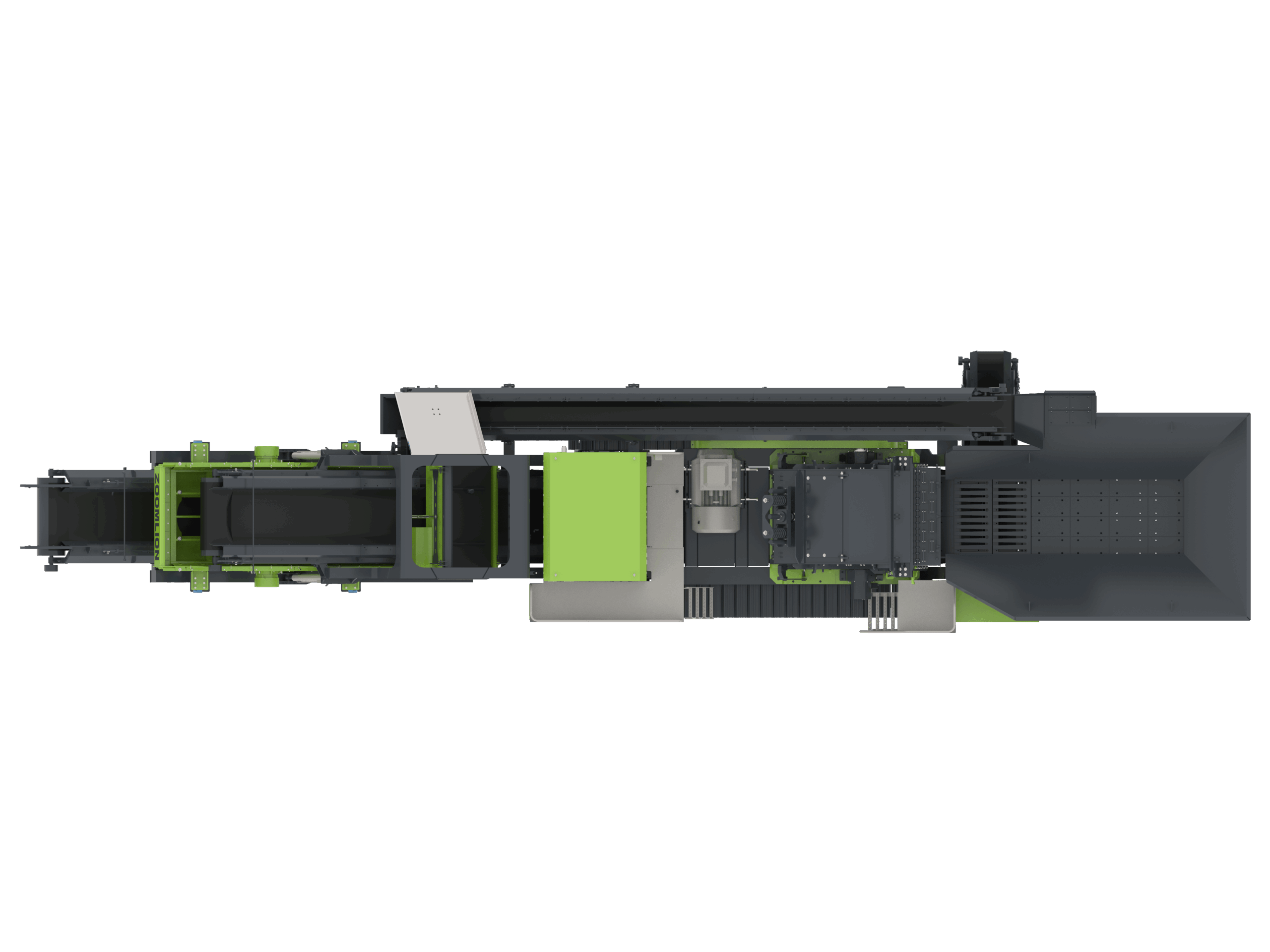

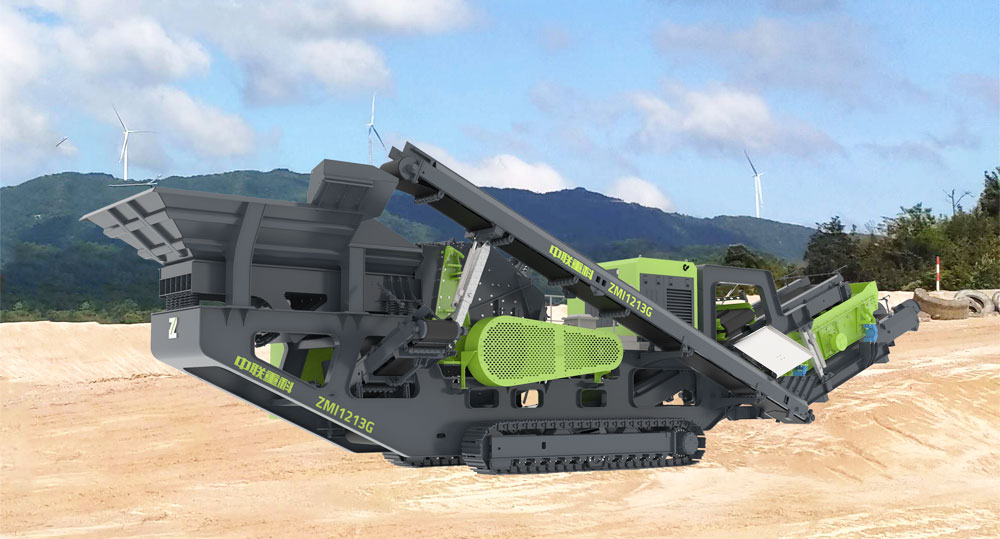

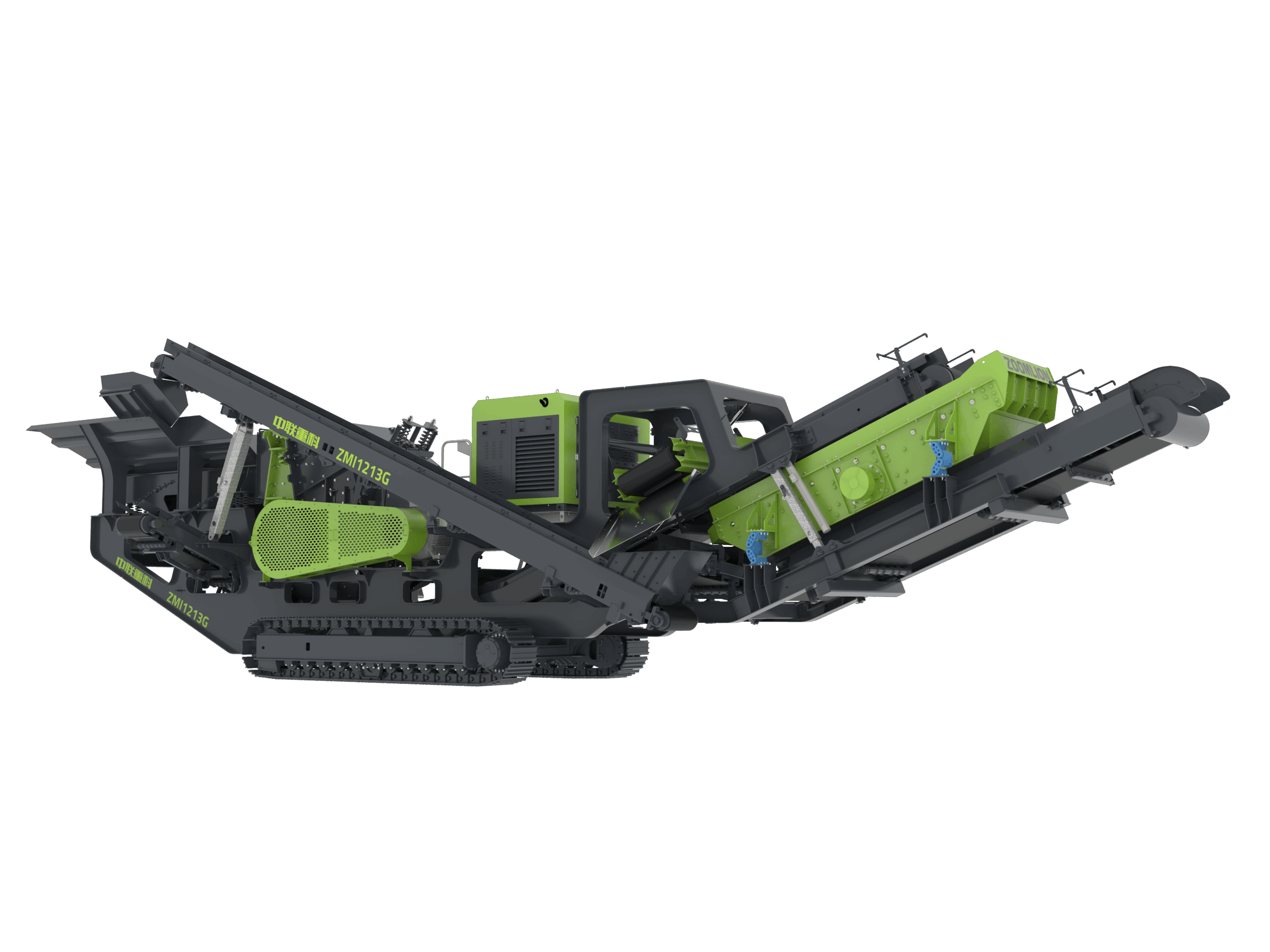

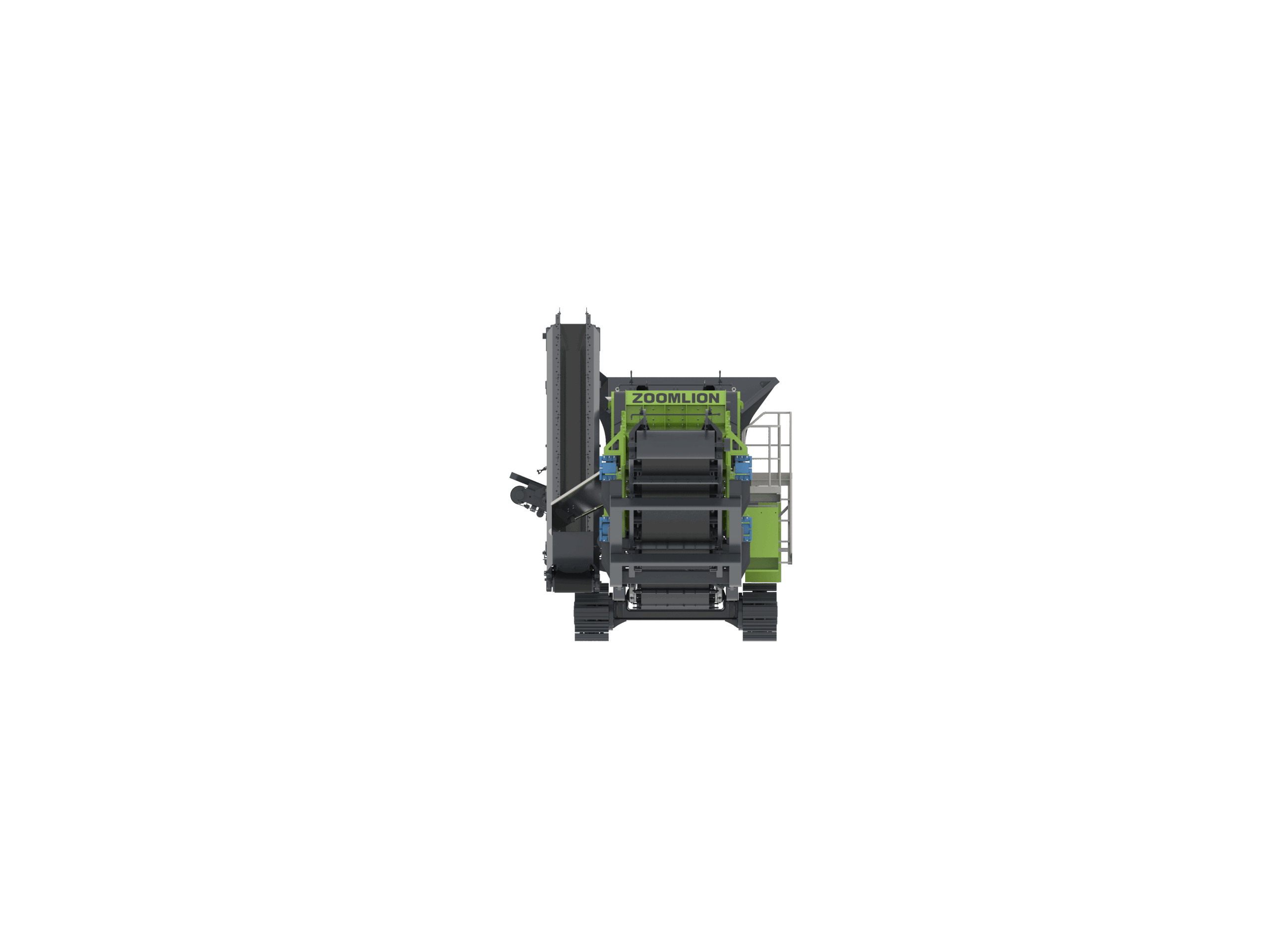

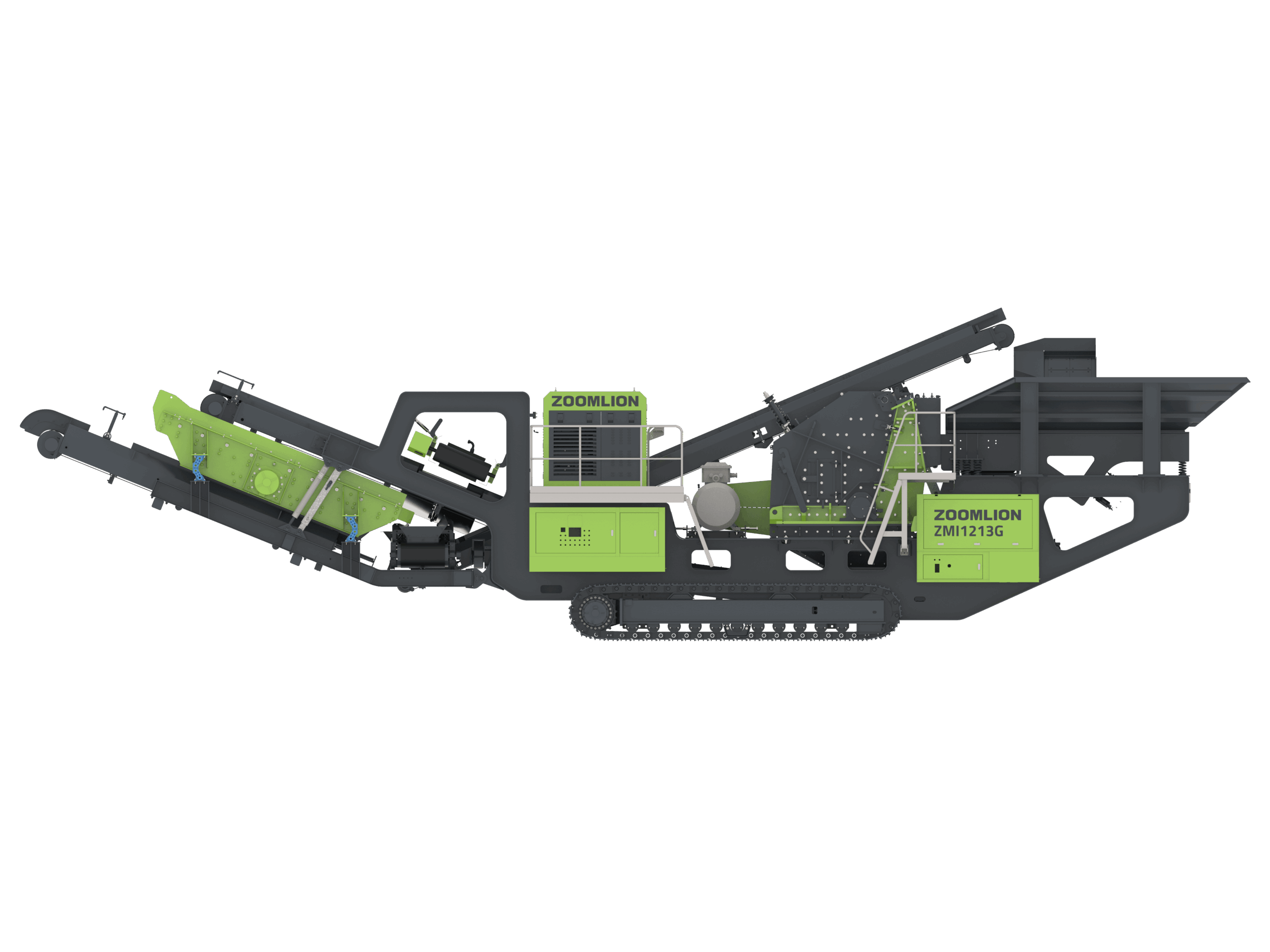

Modularized assembly technology facilitates transport and maintenance. The max capacity of ZMI1213G mobile impactor crusher is 350t/h, and the max feeding grain size is 600mm. The various options that include an additional screen module with a return conveyor, magnetic separator and air blower greatly expand the application. The ZMI1213G mobile impactor crusher is equipped with a load-sensitive hydraulic control system, which has the advantages of low caloric value, less power loss, accurate and safe control.
| Main Parameters | Unit | Value |
| Capacity | t/h | 180-350 |
| Inlet Size | mm | 900×1320 |
| Main Conveyor Width x Length | mm | B1000x13000 |
| Discharge Height | mm | 3200 |
| Crushing Device Power | kW | 250 |
| Engine Power | kW | 103 |
| Transport Size Width x Length x Height | m | 18×3.55×3.75 |
| Total Weight | t | 51 |
| Power Type | \ | E |
