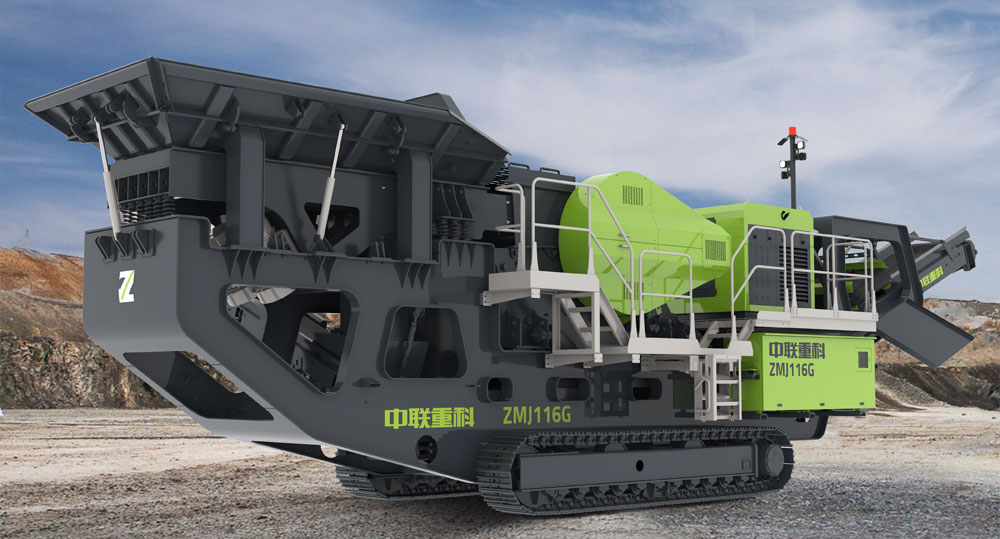

ZMJ116G Mobile Jaw Crusher Station

Crushing & Screening Equipment

ZMJ116G Mobile Jaw Crusher Station

Superior performance and efficient and reliable

Modularized assembly technology facilitates transport and maintenance.
The max capacity of ZCJ116 mobile jaw crusher, made by ZOOMLION, is 450t/h, and the max feeding grain size is 650mm.
The smart control systems of ZMJ116G mobile jaw crusher have the function of remote real-time diagnostics & easy process optimization.
The ZMJ116 mobile jaw crusher are equipped with a load-sensitive hydraulic control system, which has the advantages of low caloric value, less power loss, accurate and safe control.

9c7e7709541d486bbd90852b92254b5d
4eb866345659421ea0c3f4396f03fb92
517a337293954334b7bcd9eb86a7e41a 4c54d7d15cd340a3b3ddca8799ad4797 b0aa184143564e369c15fc14ae0dd823 dd367a6dc3ab47f2b4d4e70a79d9df57 43d1599a6948453a9d2bd30ad74d70ae 8eb1bbaab7a04ca3a5c6a5582c28dd60
IMAGES

650 mm

Maximum feed size

760*1150 mm

Feed opening

165 kW

Driving Power

Advantage introduction

  • Use ZCJ116 jaw crusher, made by ZOOMLION
  • Capacity is 450t/h, the max feeding grain size is 650mm
  • Remote real-time diagnostics & easy process optimization
  • Low caloric value, less power loss, accurate and safe control
Main Parameters Unit Value
Capacity t/h 165-400
feed opening mm 760×1150
feed opening  length mm 70-200
main conveyor width mm B1000
Discharge Height mm 3500
Engine power kW 132
Driving Power kW 165
Width x Length x Height m 15.15×3.46×3.878
Total weight t 52
Power Type \ E
